Heavy Duty Retail Traffic Doors

Product Description

This door is constructed of a high-density, foamed-in-place Non-CFC Urethane core, textured rotationally molded cross-linked polyethylene, V-Cam Hardware System and a Lower Jamb. Standard features include a 16” x 16” polycarbonate window and full perimeter gasketing.

Options consist of various window configurations, molded spring bumpers, stainless steel impact plates, and an array of colors. The Heavy Duty Retail Traffic Door has an R-Factor of 9.86, complies with all USDA Sanitation Requirements and is NSF Approved – making this a staple in your retail application!

Ideal for: Retail Applications with Heavy Pedestrian / Cart Traffic

Door Type: Rotationally Molded Traffic Door
Door Size: Available up to 96" x 120"
Construction: 1-1/2" thick panel with 1/8" thick skin rotationally molded cross-linked polyethylene with Non-CFC Foamed-In-Place Core. Back Hinge Post Molded into Panel
Hinge: V-Cam Hardware System with 12" Lower Jamb Guard
Window: 16" x 16" Scratch Resistant Recessed Polycarbonate with Black ABS Frame
Door Thickness: 1-1/2"
Core: High Density, Foamed-In-Place, Non-CFC Urethane Core with R Factor of 9.86. 1" diameter molded hinge post for internal reinforcement
Back Channel: None
Gasketing: Full Perimeter Gasketing
Finish: 1/8" thick textured rotationally molded cross-linked polyethylene skin
Impact Plates: Optional

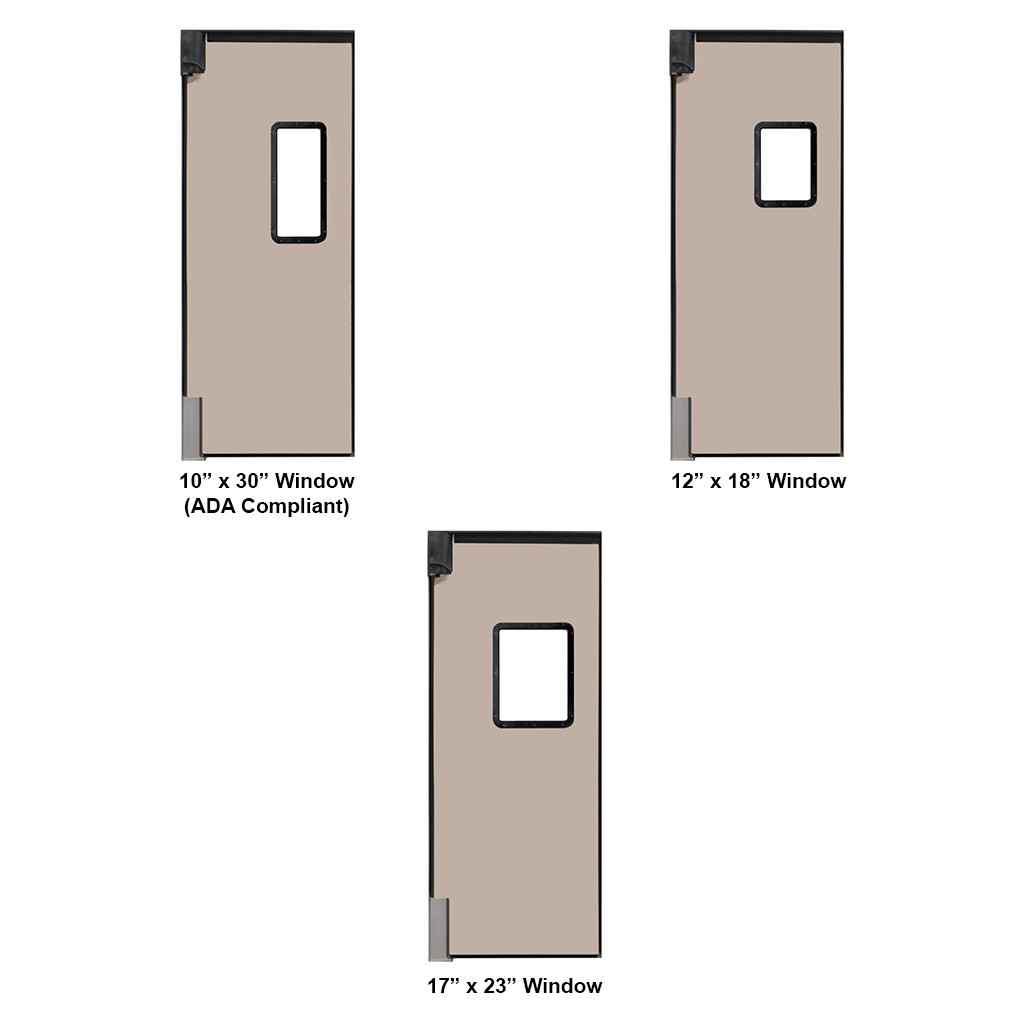

Options: Various Window Configurations Available (12" x 18", 16" x 16", 17" x 23", 10" x 30 ADA Compliant), Stainless Steel Impact Plates (12", 24"), Molded Teardrop Bumpers (18", 24", 36", 42")

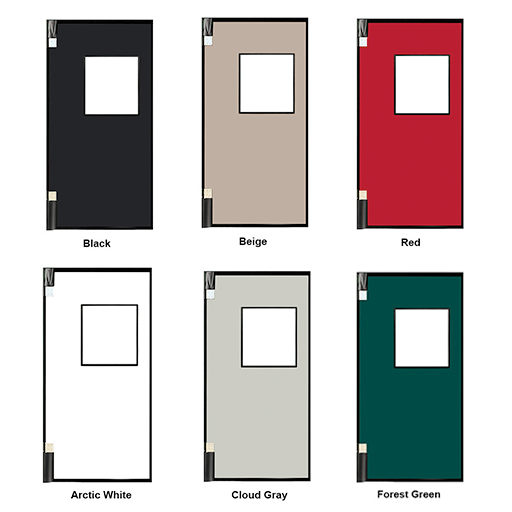

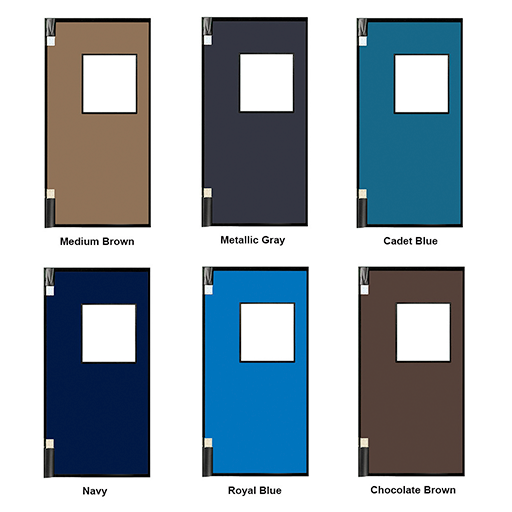

Colors: Black, Red, Burgundy, Cloud Gray, Beige, Royal Blue, Navy, Chocolate Brown, Medium Brown, Jade, Metallic Gray, Cadet Blue, Forest Green, Arctic White
Traffic: Personnel, Cart
Applications: Retail, Light Industrial, Supermarket, Institutional, Restaurant, Cooler
