Medium Duty Impact Door
This door is constructed of a high density, foamed-in-place Non CFC Urethane core, rotationally molded cross-linked polyethylene, V-Cam Hardware system, Lower Jamb Guard, and an internal steel reinforced back channel. Standard features include a 20.5” x 22.5” polycarbonate window and full perimeter gasketing.
Options consist of various window configurations, molded spring bumpers, stainless steel impact plates, and an array of colors. The Medium Duty Impact Door is a staple industrial door product.
Ideal for: Warehouse Applications with frequent Motorized Pallet Traffic
Not seeing what you need?
Want some help building a custom door?
Product Description
This door is constructed of a high density, foamed-in-place Non CFC Urethane core, rotationally molded cross-linked polyethylene, V-Cam Hardware system, Lower Jamb Guard, and an internal steel reinforced back channel. Standard features include a 20.5” x 22.5” polycarbonate window and full perimeter gasketing.
Options consist of various window configurations, molded spring bumpers, stainless steel impact plates, and an array of colors. The Medium Duty Impact Door is a staple industrial door product.
Ideal for: Warehouse Applications with frequent Motorized Pallet Traffic
- Door Type
- Rotationally Molded Standard Duty Traffic Door
- Door Size
- Available up to 96” x 120”
- Construction
- 1-7/8” thick panel with 1/8” thick skin rotationally molded cross-linked polyethylene with Non-CFC Foamed-In-Place Core. Back Hinge Post Molded into Panel
- Hinge
- V-Cam Hardware System with 12” Lower Jamb Guard
- Window
- 20.5” x 22.5” Scratch Resistant Recessed Polycarbonate with Aluminum Frame
- Door Thickness
- 1-7/8”
- Core
- High Density, Foamed-In-Place, Non-CFC Urethane Core
- Back Channel
- Internal Steel Reinforced Back Spine
- Gasketing
- Full Perimeter Gasketing
- Finish
- 1/8” thick rotationally molded cross-linked polyethylene skin
- Impact Plates
- Optional
- Options

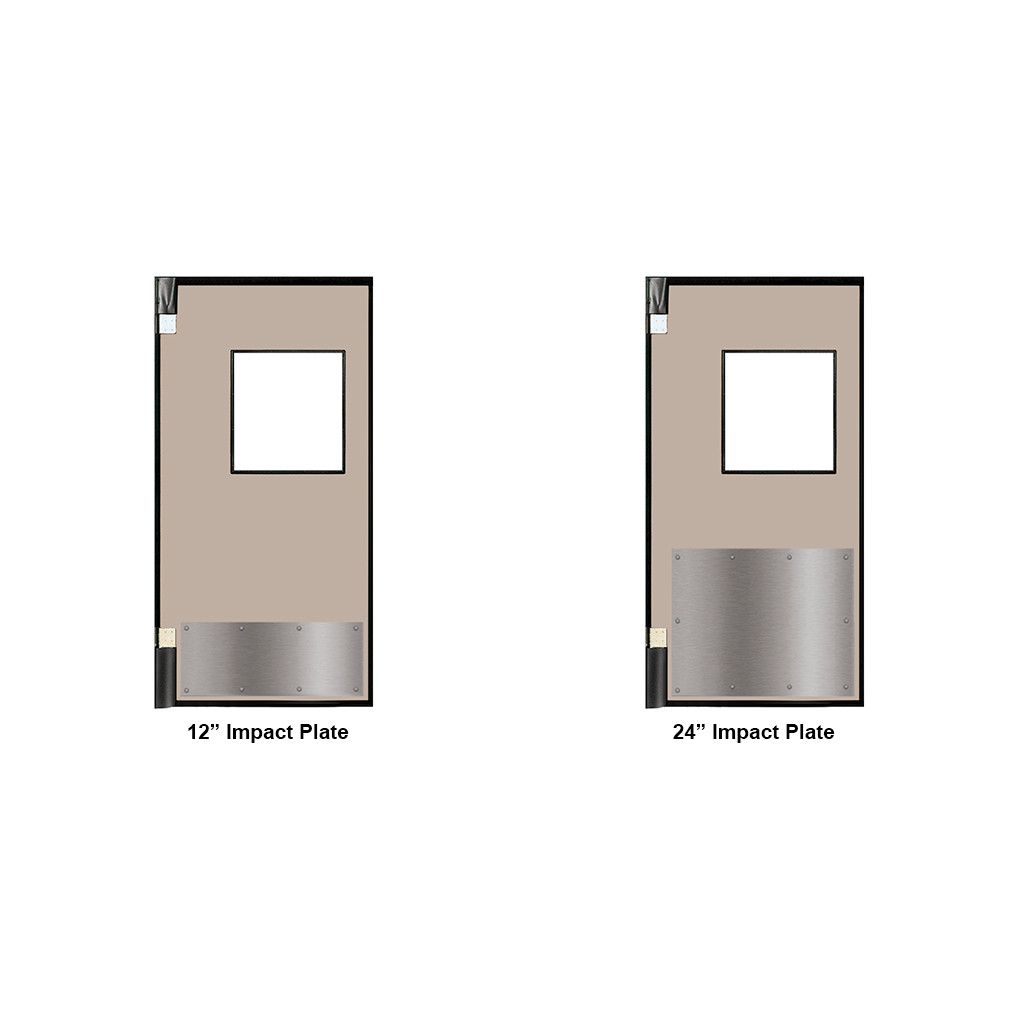

- Various Window Configurations Available (20.5” x 22.5”, 24” x 30”), Stainless Steel Impact Plates (12”, 24”), Molded Teardrop Bumpers (18”, 24”, 36”, 42”)
- Colors

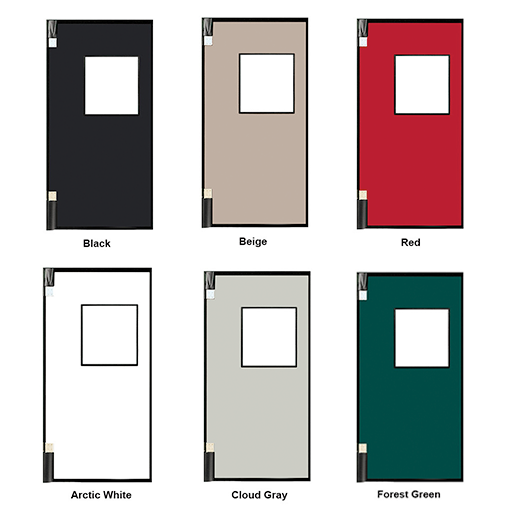

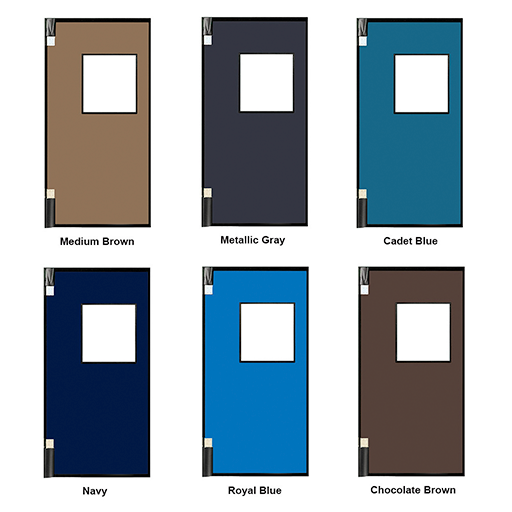

- Black, Red, Burgundy, Cloud Gray, Beige, Royal Blue, Navy, Chocolate Brown, Medium Brown, Jade, Metallic Gray, Cadet Blue, Forest Green, Arctic White
- Traffic
- Personnel, Cart and Walk-Behind Motorized Pallet Traffic
- Applications
- Retail, Light Industrial, Supermarket, Institutional, Restaurant
