Custom Industrial Curtains

Custom Industrial Curtains are completely customizable based on your specific application and needs. We can design any type of curtain including sliding and stationary, with a variety of mounting options.

Industrial Curtains are ideal for:

  • Dividing Manufacturing Space
  • Environmental Control
  • Dust and Debris Control
  • Paint / Washdown Spray Control
  • Smoke Containment
  • Welding Containment

Benefits

  • Cost Effective vs. Permanent Walls
  • Quick and Easy Install and Breakdown
  • Keep your Personnel Comfortable
  • Divide and Seal off unused Warehouse Space
  • Reduce Heating and Cooling costs
  • Control Dust, Debris, Overspray and Odors

Heat Sealed Perimeter Hem

A 2” Heat-Sealed Perimeter Hem adds durability and creates a waterproof seal that does not fray, tear or readily allow bacteria growth, unlike traditional stitching.

Mounting Options

Sliding Mounting Options

Chain Mount

Vertical plates with holes allow track to hang from above using chain connected with S-hooks.

Wall Mount

Offset plates with slots allow track to mount flush against a wall.

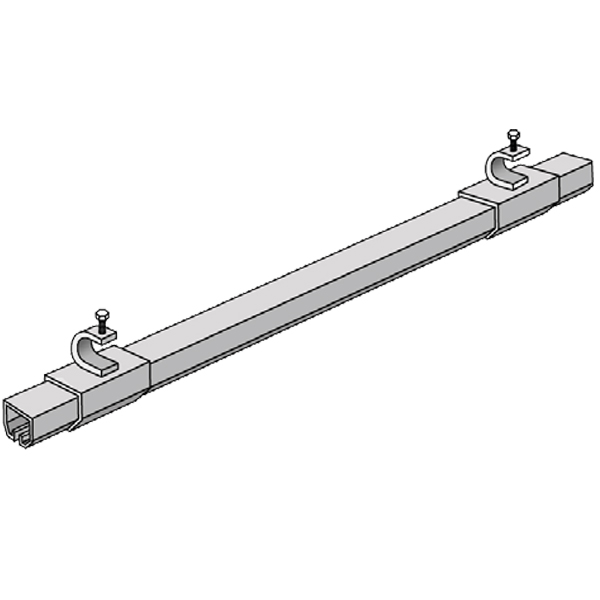

Beam Mount

C-clamps allow track to be mounted directly to overhead beams.

Ceiling Mount

Horizontal plates with holes allow track to be mounted directly to the ceiling.

Threaded Rod

90-degree brackets allow track to hang from above using 3/8” threaded rod (threaded rod not included – source locally).

Studded Tubing

Studs easily hang PVC strips, tubing is available solid or pre-drilled for threaded rod installation.

Curtain Attachments

Supported vinyl curtains are provided with grommets on 12” centers, allowing them to hang from sliding track using rollers with hooks, or to attach to square tube frame with plastic ties.

PVC Strips

PVC strips are pre-drilled for quick attachment to studded trolleys for use with sliding track, or directly to studded square tube frame.

Universal Mount

Our Universal Mounting system allows your Welding Curtain to be mounted to a ceiling, flush to a wall, or suspended from above with threaded rod (threaded rod not included – source locally).

Static Mounting Options

Our products are also static mount compatible. Beam Flange clamps with front mount tap are available.

Material & Colors

Optional Materials & Colors

Transparent PVC Material

Available Thicknesses: 14 mil, 20 mil, 30 mil, 40 mil

Clear

Anti-Static

Certifications
  • NFPA 701 Compliant (Clear-14 mil, Clear-16 mil, Clear-20 mil, Clear-30 mil, Clear-40 mil, Anti-Static-20 mil, )

Translucent PVC

Available Thicknesses: 14 mil

Aztec Red

Dark Green

Blue

Charcoal

Yellow

Certifications
  • NFPA 701 Compliant (Aztec Red-14 mil, Dark Green-14 mil, Charcoal-14 mil, Yellow-14 mil, Blue-14 mil)
  • AWS (Aztec Red-14 mil, Dark Green-14 mil)

PVC Coated Polyester

Available Weights: 14oz, 18oz, 22oz, 40oz

White

Gray

Black

Red

Orange

Yellow

Tan / Beige

Brown

Lime Green

Kelly Green

Forrest Green

Light Blue

Royal Ocean Blue

Navy Blue

Pink

Burgundy

Purple

Certifications
  • NFPA 701 Compliant (Black-18 oz, Royal Blue-18 oz, White-18 oz, Red-18 oz, Gray-18 oz, Blue-18 oz)

Accessories

Optional Accessories

Valance Curtain Panels

A valance panel can be added to fill the space between the track and the ceiling for additional containment.

Wind Pockets & Panels

Wind pockets and larger wind panels relieve air pressure from curtains by diffusing wind through mesh screens.

Floor Mounted Curtain Fasteners

Nylon webbing straps, secured to d-ring floor attachment, keeps curtains secure.

Strip Door Walk-Through

A strip door can be included to add an easy point of entry/egress. This keeps traffic flowing freely without slowly opening and closing the curtain. It also minimizes air transfer from not having to open and close the full height of the curtain.

Floor Sweep Attachment

An 8” strip of flexible PVC can be added with hook & loop fastener to the curtain hem and trimmed to match the slope or contours of the floor.

Chain-Weighted Hem

A chain-weighted hem keeps curtains hanging straight, minimizes wind movement and allows the curtain to be locked.

Magnet Attachments

Magnet Attachments provide a quick and easy way to attach and un-attach curtains. Magnets are used to attach curtains to other curtains, or adjacent steel walls and beams. Best utilized in dirty areas that would clog up traditional hook and loop attachment.

Velcro Attachments

Velcro fasteners can be added to connect multiple curtains together or to attach the curtain to the wall. The fasteners are welded or sewn onto the curtains. Pressure sensitive Velcro is available for in the field application.

Vision Panels

Vision panels can be added to your industrial curtains to allow for clear visibility within your facility. Vision panels are made from the Transparent PVC material (Clear or Anti-Static), available in 54” increments for the 20 mil, 30 mil, and 40 mil; and in 66” increments for the 14 mil.

Layouts

Optional Layouts

Have a desired or required design for your industrial curtain in your specific application? We offer a variety of styles consisting of single sided, double sided, triple sided, four sided or multiple straights.

Straight

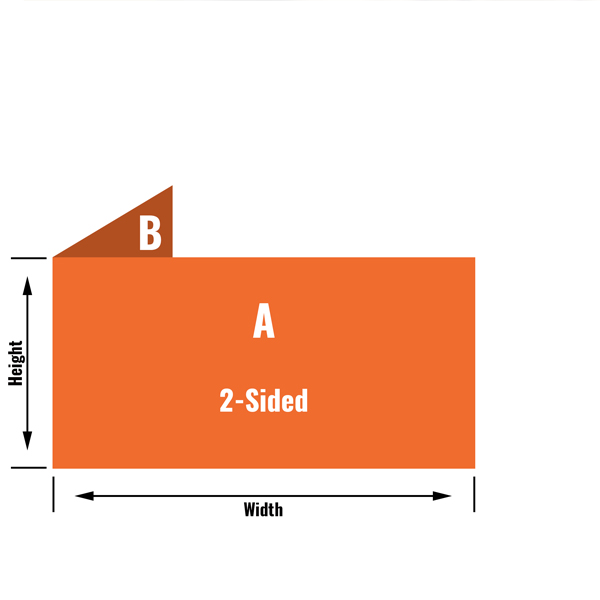

2-Sided

3-Sided

4-Sided

Multiple Straights
